GUIDE PRICE $160-$215
FlatPanel Standard
Compact flat panel | ASCOM & INDI Supported

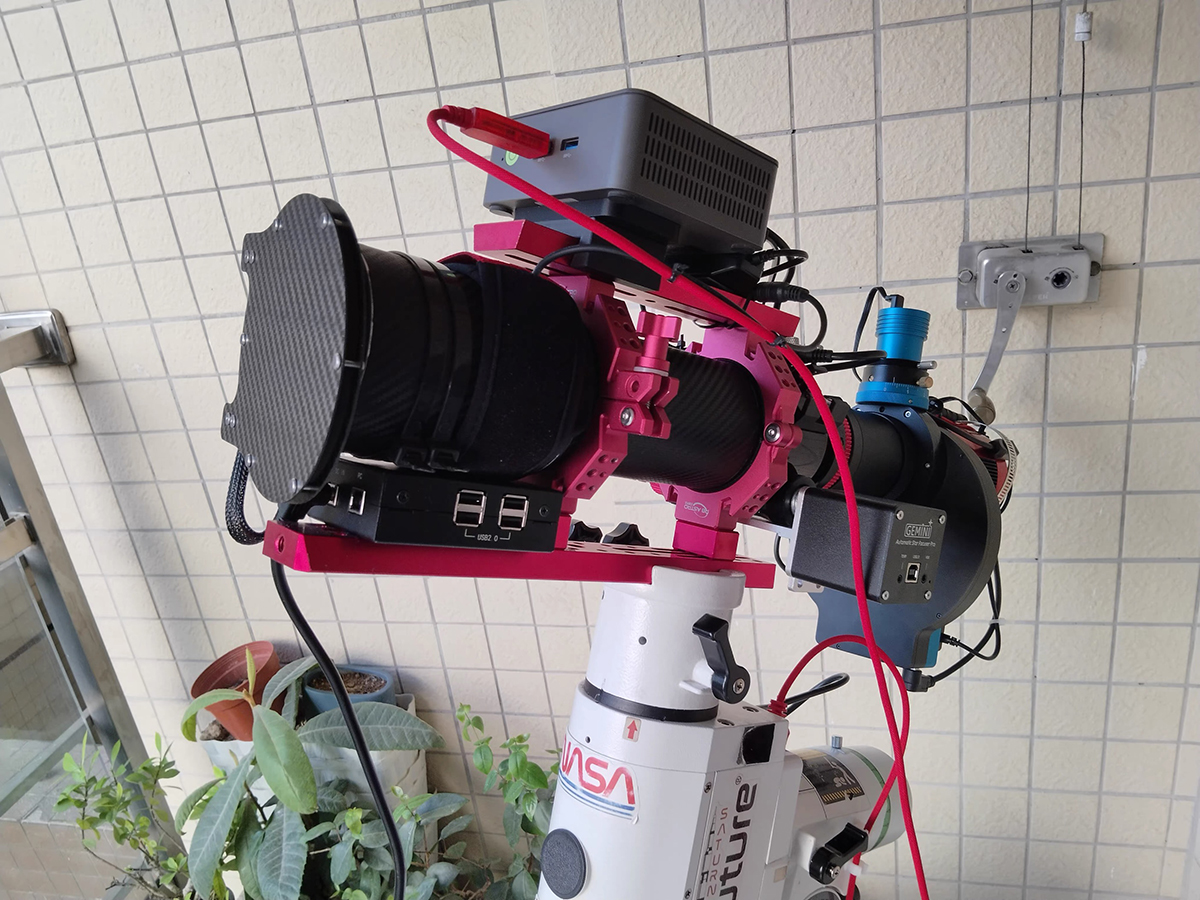

The FlatPanel Standard packs the same dual-mode 0–255 level dimming and multi-protocol control as the Plus into a compact form factor. Designed for small illuminated apertures from 75mm to 225mm with a smaller controller housing and USB-C connectivity, it delivers full ASCOM/INDI/Windows APP/IR remote support in a portable package — ideal for small refractors and travel astrophotography setups.
Key Features
Premium Materials
Constructed with 6061 aluminum alloy and carbon fiber, the compact controller housing is lightweight, sturdy and ideal for portable setups.
USB-C Communication & 12V DC Power
USB Type-C for data and brightness control, with dedicated 12V DC input (3.5×1.35mm) to drive the LED panel at full brightness.
Dual-Mode Dimming
Independent High/Low Brightness modes, both offering 0–255 levels of precise dimming for narrowband and broadband imaging.
Multi-Protocol Control
Full ASCOM, INDI, Windows standalone APP, and infrared remote control support for every workflow.
Compact Illuminated Aperture
Available in illuminated apertures from 75mm,100mm,130mm,150mm,190mm,225mm, perfect for small-to-mid refractors and camera lens setups.

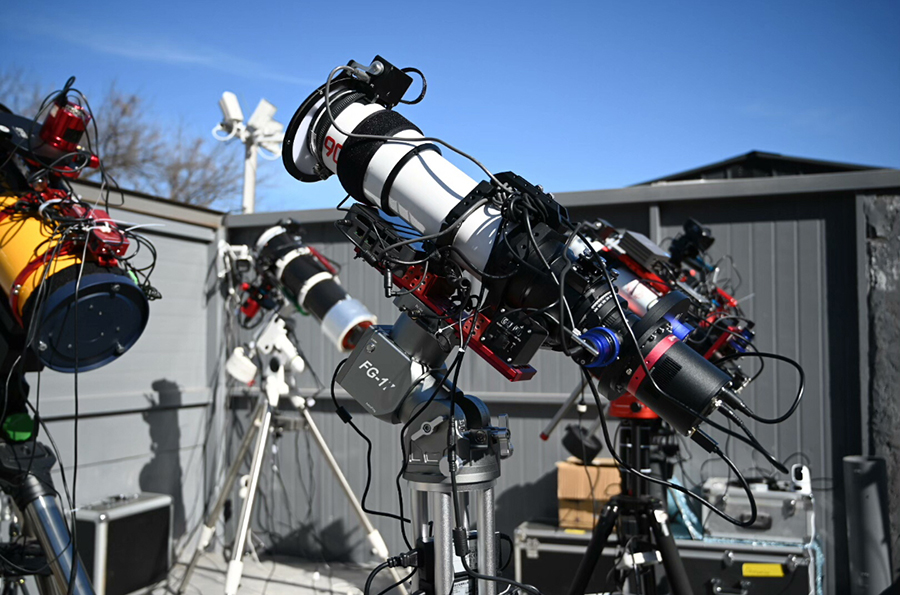

Dual-Mode Dimming
Independent High Brightness and Low Brightness modes, both offering 0-255 levels of precise dimming.
High Brightness mode for narrowband imaging and Low Brightness mode for broadband imaging, covering most astronomical shooting needs.
Compatible with telescopes of all focal ratios, flicker-free at all shutter speeds.
USB-C Communication & 12V DC Power Supply
USB-C handles data communication and control, while a dedicated 12V DC input powers the panel.
USB-C Data & Control
USB Type-C port for serial communication and brightness control — handles all software commands and firmware updates.
12V DC Power Input (Required)
Requires 12V DC power supply (5.5×2.1mm center-positive) to drive the LED panel. USB alone cannot power the panel.
Compact Controller Design
Smaller controller housing than the Plus model, optimized for portable and travel setups without sacrificing functionality.
ASCOM | INDI | Windows APP | IR Remote
Multiple control options for every workflow — from desktop automation to hands-free remote operation.
ASCOM Platform Support
Native ASCOM driver with full flat panel interface. Works with N.I.N.A., SGP, APT, SharpCap, and every ASCOM-compatible application.
INDI for Linux & macOS
Open-source INDI driver for KStars, Ekos, and StellarMate. Full cross-platform support out of the box.
Windows Standalone APP
A full-featured Windows application for direct brightness control and initial configuration — no capture software required.
Infrared Remote Control
The included IR remote provides convenient hands-free brightness adjustment without opening any software.
What is in the Box
1 × Flat field panel main unit
1 × Dedicated USB-C data cable
1 × 3.5×1.35mm dual male power cable
1 × 5.5×2.1 to 3.5×1.35 dual male adapter
4 × Nylon cable ties
1 × Multifunctional infrared remote control
Technical Parameters
| Illuminated aperture | 75mm, 100mm, 130mm, 150mm, 190mm, 225mm |
| Material | 6061 Aluminum Alloy & Carbon Fiber |
| Brightness Uniformity | >95% |
| Dimming Range | 0–255 levels (High/Low mode) |
| Control Protocol | ASCOM / INDI / USB-serial / IR |
| Power Input | 12V DC (3.5×1.35mm) + USB-C (data) |
| USB Interface | USB Type-C |
| Controller Size | Compact (smaller than Plus) |
| Warranty | 3 Years |
