GUIDE PRICE $129
PowerBox & Hub Mini v2
Compact & Portable Power and Data Hub
No Built-in Control Functions — Provides a pure and stable power supply environment for astronomical equipment. Featuring industrial-grade craftsmanship, multi-channel independent outputs and all-round safety protection, this compact power box supports simultaneous power supply and data interaction for multiple devices.
Key Features
Independent Channel Protection
Each DC output comes with a separate fuse for upgraded safety protection — one channel fault won not take down your entire rig.
Premium Housing
CNC-machined anodized aluminum alloy body with efficient heat dissipation and high durability for years of field use.
Wide Compatibility
Fully compatible with astronomical cameras, equatorial mounts, and various industrial peripherals — one hub powers it all.
Versatile Installation
Multi-specification screw holes adapt to diverse installation scenarios — mount it on your telescope ring, tripod leg, or dovetail plate.

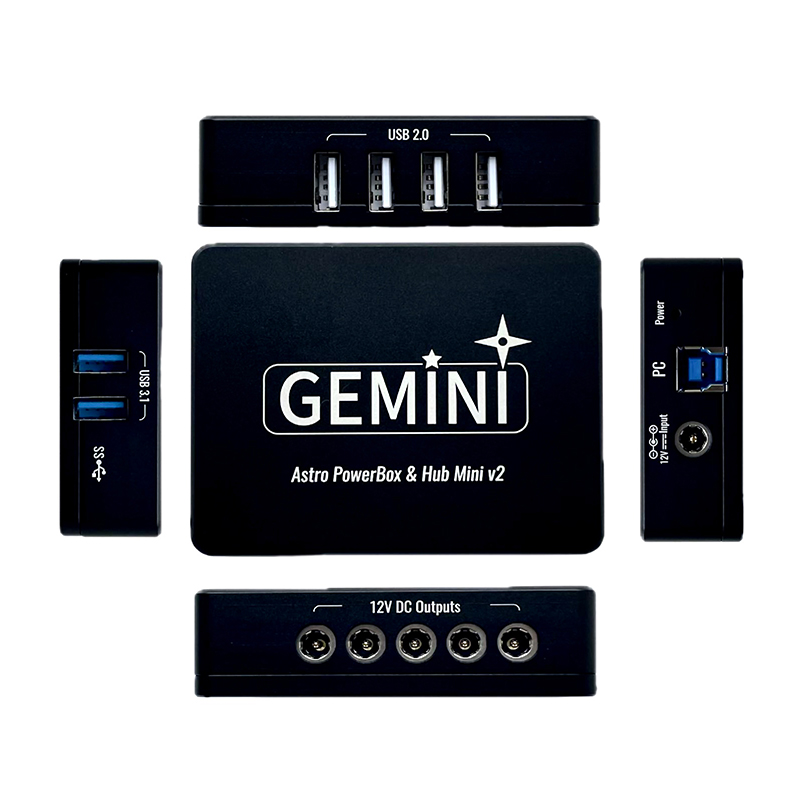

Multi-channel Independent Outputs
All outputs adopt an independent circuit design to eliminate mutual interference, enabling stable simultaneous power supply for multiple devices.

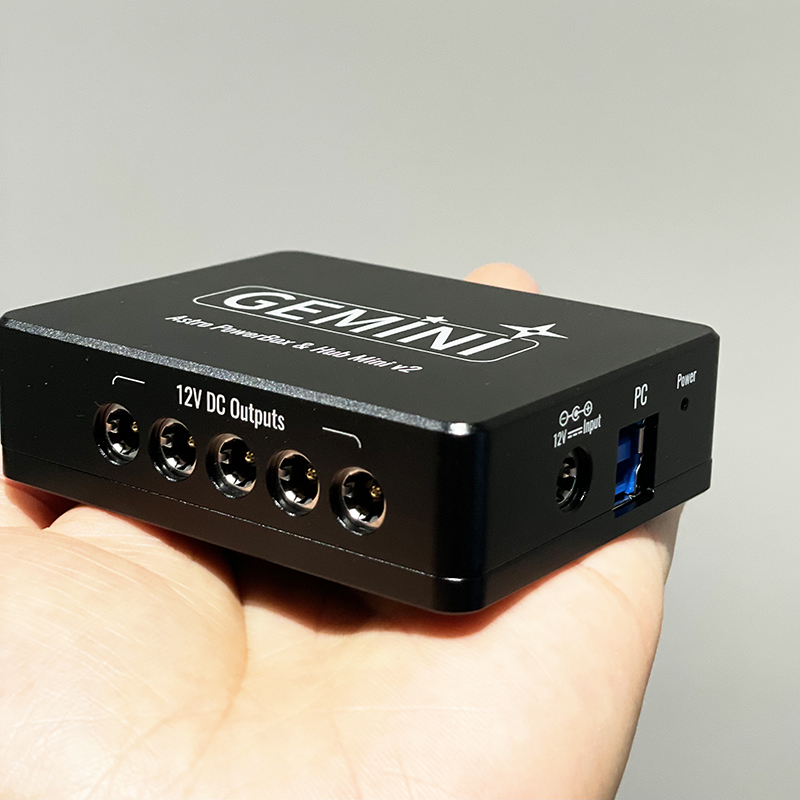

5 × DC 12V 5521 Outputs
Gold-plated interfaces equipped with independent 10A resettable fuses. Each channel supports overcurrent and short-circuit protection. A faulty single channel will not affect the operation of other channels, ensuring high safety and reliability.

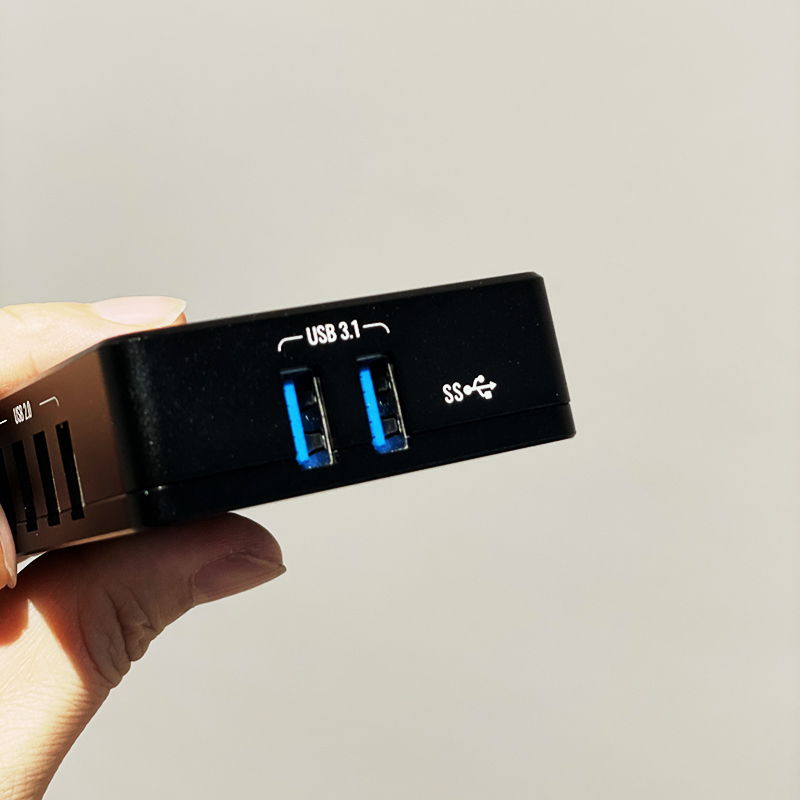

2 × USB 3.1 Type-B Ports
Delivers stable high-speed output, perfectly compatible with high-precision imaging devices such as cooled cameras and guide cameras, supporting simultaneous power supply and high-speed data transmission.
4 × USB 2.0 Type-B Ports
Provides low-ripple pure power output, ideal for astronomical precision accessories including focusers, filter wheels, equatorial mounts and flat field devices.
Dual Input Interfaces
Equipped with two industrial-grade input ports for flexible power access and wide compatibility with various hosts.
DC 12V/10A Input
Gold-plated 5525 female socket with anti-oxidation and low contact resistance, ensuring continuous and stable power output without jitter or poor contact issues.
USB 3.0 Type-A Input
Standard industrial square port for stable connection with industrial PCs and control boxes, realizing reliable device docking and power access.
Aerospace-grade Industrial Housing
Adopting aerospace-grade aluminum alloy and processed via precision CNC machining and premium anodization, the housing features high hardness, scratch resistance, oxidation resistance and excellent heat dissipation. The integrated compact structure is sturdy and durable, suitable for long-term outdoor and industrial applications while saving installation space.

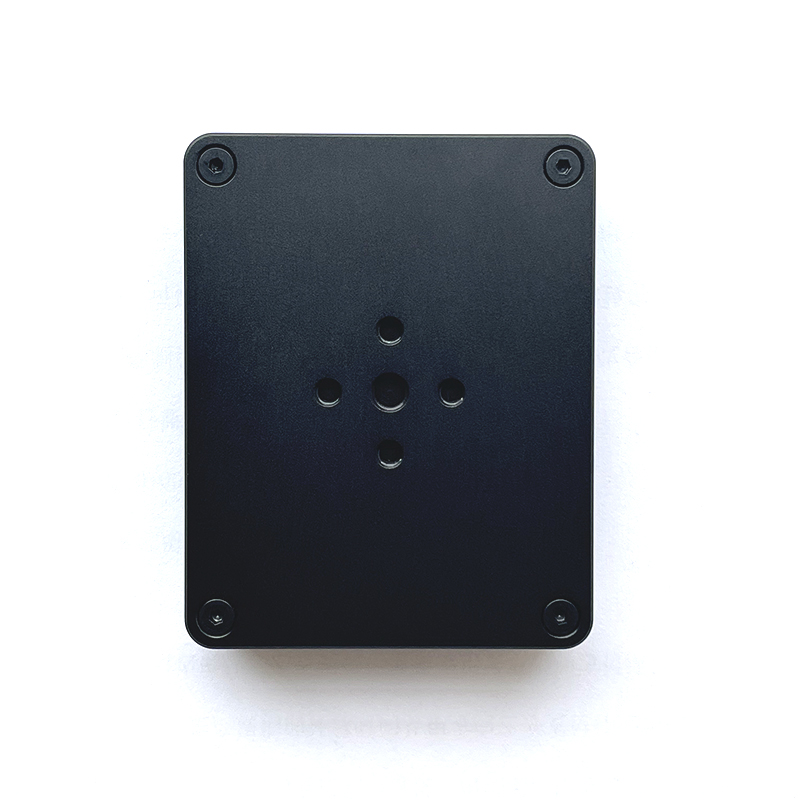

Multi-angle Flexible Mounting
The base is reserved with 4 M4 screw holes and 1 M6 screw hole, supporting multi-angle installation. It adapts to various equipment layouts and field observation scenarios with strong compatibility.

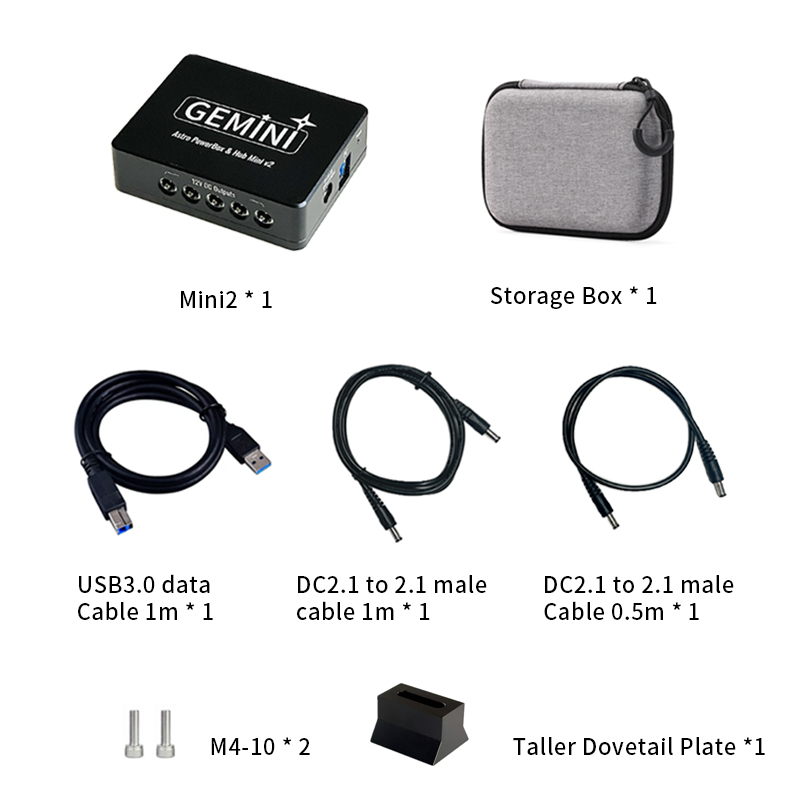

Package List
Technical Parameters
| DC Input | 12-14V DC |
| Maximum Current | 6A per DC channel / 10A Total |
| Power Input Connector | 5.5×2.5mm Barrel(Center positive) |
| DC 12V Power Outputs | 5.5×2.1mm Barrel×5(center positive),Always ON |
| USB Ports | 2×USB3.1 Super Speed ports, 4×USB2 High Speed ports |
| Amperage on USB port | Max 2.5A each |
| Protection | OCP, OVP, RPP |
| Weight | 140g |
| Warranty | 3 Years |
